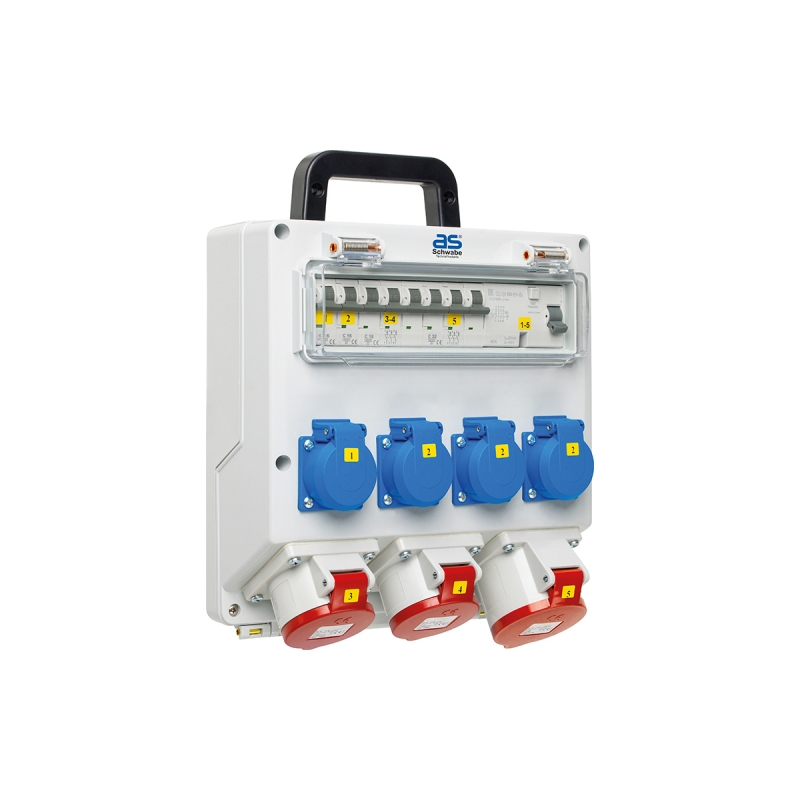

PIMENTEIRO FIXO 11D 400V/16A 2xCEE16A+1xCEE32A+4xSCHUKO

FIXO 11D 400V/16A 2xCEE16A+1xCEE32A+4xSCHUKO

Categories: FIXO CEE wall distributor, FIXO wall distributor prepared for fixed connection of cables up to 5x16, Power combination units
SKU: 61513
Main line branch terminal: To ensure a long-term and reliable electrical installation, a high-quality, solid terminal has been installed.
All models are wired ready for connection. Hinges on the cover ensure that it can be opened when connected and does not simply hang down.
Entrance
Prepared for fixed connection of NYM-J up to max. 5×10
Two knockouts for universal cable entries including stepped nipples for sealing.
Output
4 x 230 V, 16 A socket outlets with earthing contact (two each distributed over one phase)
2 x CEE socket outlet 400 V, 16 A, 5-pin
1 x CEE socket outlet 400 V, 32 A, 5-pin
Protection
1 × RCD 40 A, 4-pole, 30 mA, type A
2 × LS C 16 A, 1-pole
1 × LS C 16 A, 3-pole
1 × LS C 32 A, 3-pole
