Precision Core Alignment Fusion Splicer CFS100

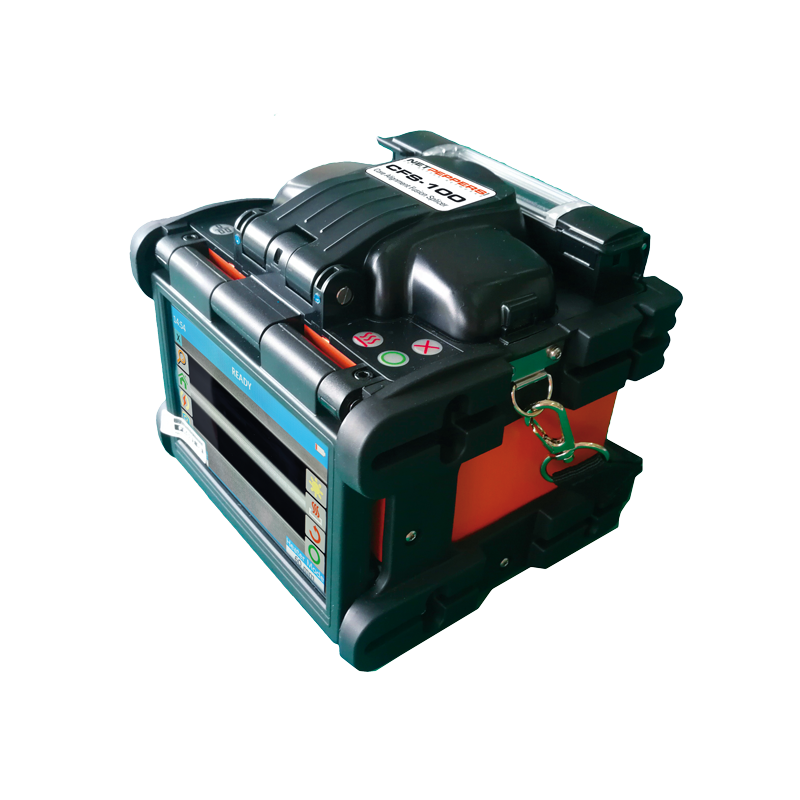

The core alignment, 3-axis controlled fusion splicer CFS-100 is the perfect companion for small and large splicing projects. The lightweight and flexible precision splicer allows splicing of all common fiber.

Features
PRECISE SPLICING RESULTS
6 motors-core alignment for precise splicing results

UNIVERSALLY APPLICABLE
Support for all common fibers

4 IN 1 FIBER RETENTION CLAMPS
for bare fibers, pigtails, patch cords and FTTH indoor fiber splices

QUICKLY SPLICED
Splice time = 9 s, heating time = 25 s, adjustable

EVERYTHING AUTOMATICALLY
End surface inspection, automatic arc adjustment, loss estimation, temperature and pressure compensation

AUTOMATIC SHRINK OVEN
for protection sleeves up to 60 mm

LED LIGHTNING
of the splice area, connection of an external work light possible

For professional splicing of all common fiber types
The lightweight and flexible precision splicer allows splicing of G.651 fibers with a splice loss below 0.01 dB and of G.652 fibers below 0.02 dB (typical).

Equipped with detachable universal retention clamps, SOC clamps and internal thermometer and barometer, the CFS-100 can be used anywhere. Fast five seconds start up time and an average of nine seconds per splice as well as the automatic heating furnace for shrink sleeves speed up the workflow and leads to more splices per time.

Intelligent systems support the user at work
The CFS-100 supports the user in troubleshooting and quality estimation bydetecting the cleave break angle, the core axis offset, the cleanliness of the fiber and the splice loss.

Create your own limit values and define them in profiles. Before each splicing process, an analysis of the splicability of the fibers and a fiber cleaning via cleaning arc is carried out. If the prospect of a satisfactory splice result is not good enough, the device cancels the process to save time-consuming rework. Re-ARC allows the subsequent improvement of the splice result.

If desired, splicing and shrinkage can be defined in detail in different profiles. Ifthe user doesn`t want to set them up manually, a fully automatic detection of the fiber type can also be carried out and the device determines the required parameters itself.

SCOPE OF DELIVERY
• CFS-100 splicer
• pair of electrodes (pre-installed)
• pair of universal fiber retention clamps (4 in 1)
• SOC retention clamp
• SOC shrink oven retention clamp
• Li-Ion battery
• Fiber cleaver OFC-30
• cooling tray for shrink oven
• power adapter + power cord
• micro-USB cable (for data transfer)
• carrying case
• carrying strap for carrying case
• quick start guide
• manual
• calibration certificate
• Maintenance tools
