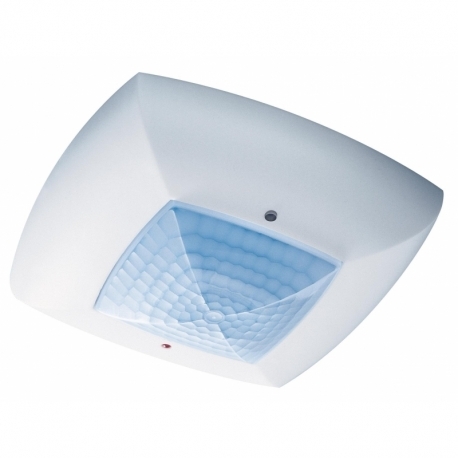

PRESENCE DETECTOR COMPACT OFFICE DIM

Name: PRESENCE DETECTOR COMPACT OFFICE DIM

Description
¦ Presence detector (PIR)
¦ Automatic control of lighting depending on
presence and brightness
¦ Square detection area allows accurate and
simple planning
¦ Light switching output (relay, 230 V) and
1-10 V interface
¦ Mixed light measurement, suitable for
fl uorescent lamps (FL/PL/ESL), halogen/
incandescent lamps and LEDs
¦ Brightness threshold, self-learning switchoff
delay and stand-by time adjustable
¦ The stand-by time guarantees a minimum
brightness and provides for a sense of
security in hospital and care environments
as the lighting does not switch off when
areas are unoccupied but remains in standby
mode for the set time
¦ Choice of fully or semi automatic operation:
In „Semi-automatic“ mode the
light must be switched on manually and
switches off automatically
¦ Parameters can be set using the potentiometers
or via the optional service remote
controls
¦ Optional user remote control
¦ Ready for use by ex-factory set items
¦ Test operation to check detection area and
installation
¦ Master/slave or master/master parallel
switching: Up to ten detectors can be
connected with each other to extend the
detection area
¦ Ceiling mounting in fl ush-mounted box
¦ Possibility of surface mounting by using a
surface frame
