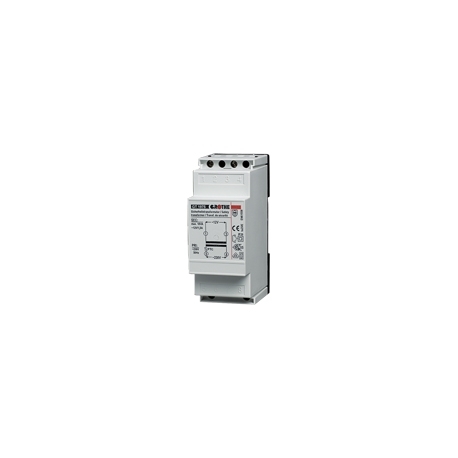

SAFETY TRANSFORMER GT1975 12 V

Name: GT 1975
Description: Safety transformer
• 12 V~ (1.5 A)

Description
• Installation in electrical distributor/flat distributor, tested
according to EN61558
• Short-circuit resistance through PTC, suitable for continuous load
• Meets the most stringent environmental requirements
• Certified by VDE and KEMA, identified by ENEC mark for use
throughout Europe
Technical data
• Primary: 230–240 V~ (50 Hz)
• 90 x 36 x 55 mm (corresponds to 2 installation modules)
Note
• Higher output voltage at low loads or no load!
• Following a short circuit, start-up is to be performed by
briefly disconnecting the primary side from the mains
Accessories for surface-mount installation set
• Incl. two covering caps for IP 20
• Incl. clamping rail and material for surface-mount installation
