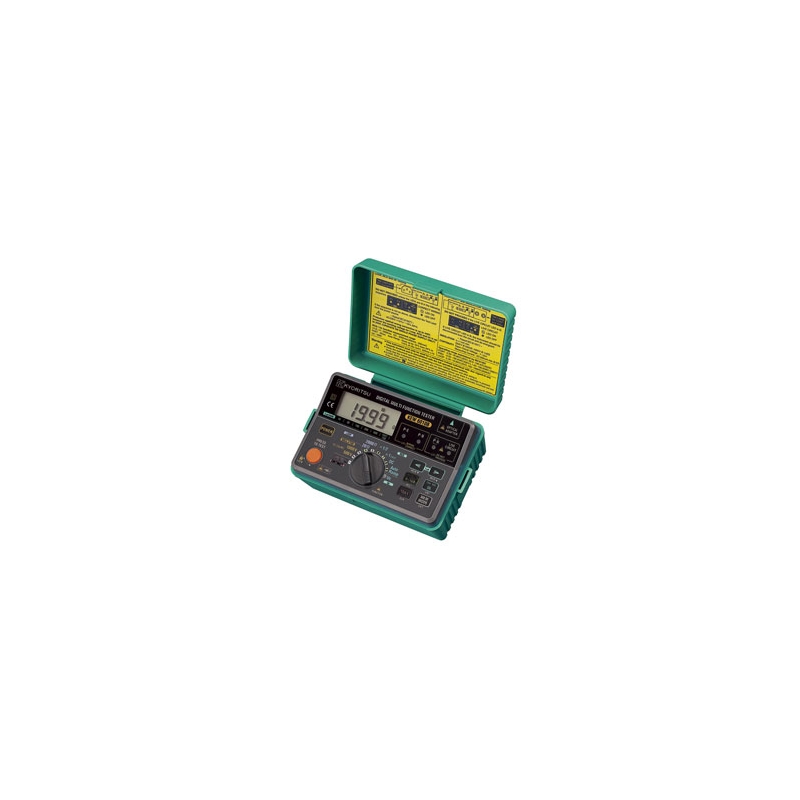

MULTI FUNCTION TESTER 6010B

Name: MULTI FUNCTION TESTER 6010B

Functions

- Continuity:
20/200O
200mA Test Current
- Insulation:
500/1000V, 20/200MO
1mA Rated Test Current
- Loop Impedance:
20/2000O
15mA Test Current at 2000O (No RCD Trip)
- RCD:
10/30/100/300/500mA
x1/2, x1, Fast Trip(40ms), DC, Auto Ramp
- Test of a large kind of RCD's:
Standard, Selective, AC and A
(DC sensitive breakers)
- Uc(Contact Voltage): 100V
- Designed to IEC 61010-1, IEC 61557
- Data Memory:300 measured results
- The stored data can be transferred to PC via Optical Adaptor Model 8212-USB or 8212-RS232C.
