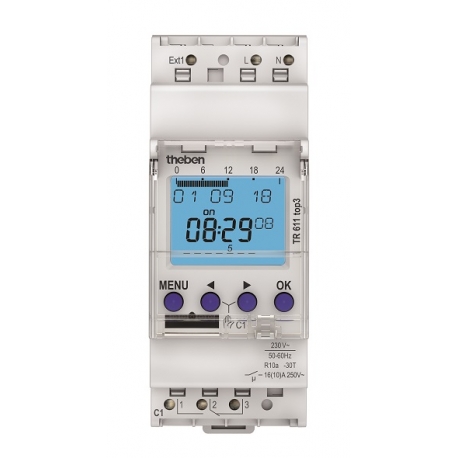

TIME SWITCH 1CHANNEL 84M TR 611 top3

TIME SWITCH 1CHANNEL 84M TR 611 top3

Digital time switch with weekly program
1 channel
Programming by app possible
Safe transfer via optional Bluetooth Low Energy OBELISK top3
Maximum manipulation security, time switch programs can only be transferred from the app to the time switch when the Bluetooth OBELISK top3 is plugged into the time switch
100 % compatible with top2
3 special programs (small annual program)
External input
Connectable sensors (external selector switch, sequence timer)
Connectable switches (ON or OFF permanent switching)
DuoFix spring terminals
For 2 conductors each
Wire or strand (with or without wire end sleeve)
Wire diameter: 0.5 - 2.5 mm²
Button for releasing plug-in connection
Text-oriented user guidance in display
Preset date and time
fully operable without mains connection
84 memory locations
Interface for OBELISK top2 memory card (PC programming)
2. insertable switching program
Copying programs
Storing programs
10 year power reserve (lithium battery)
Zero-cross switching for relay-saving switching and high lamp loads
ON-OFF switching times
Pulse program
Cycle program
Switching preselection
Permanent switching ON/OFF
Timer countdown
Integrated operating hour counter
Reset option
Service function for monitoring maintenance intervals
Holiday program
2 random programs
Display back light (can be turned off)
Permanent switching ON/OFF
PIN coding
Automatic summer/winter time changeovercan be deactivated
Date rule options are already stored for Europe, the USA and other countries
own date rule options or changeover around set dates are available
