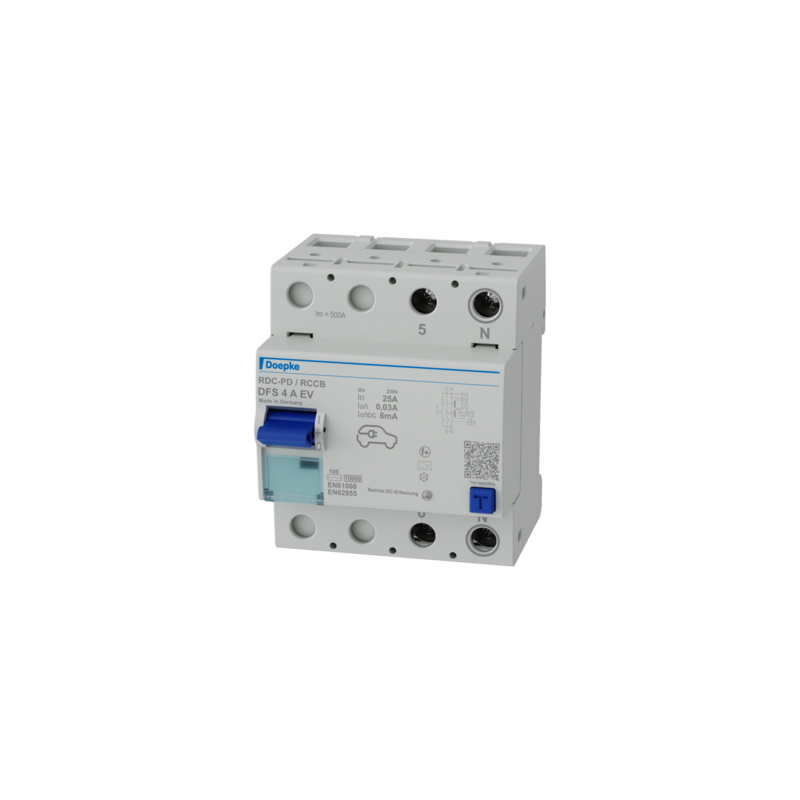

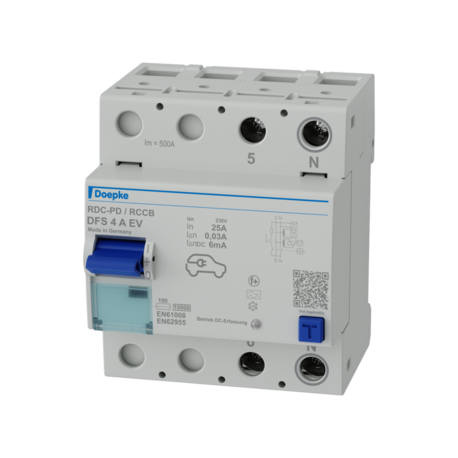

DISJUNTOR DIFERENCIAL DFS 4 025-2/0,03-A EV

RCCB DFS 4 025-2/0,03-A EV

Description:
Residual current circuit-breakers, two-pole, 25 A, 0,03 A, Type A, for electromobility, N right

Function:
Type A residual current circuit-breakers detect pulsating direct current and alternating current. Our EV RCCB was specifically developed for use in charging stations for electric vehicles. The EV RCCBs detect smooth DC residual currents and safely trip at 6 mA DC. This protects upstream type A or F RCCBs and ensures maximum safety at your charging station.

Properties:
additional mains-voltage-dependent function for detecting smooth DC residual currents, Tripping threshold of 6 mA for smooth DC residual currents , tripping not dependent on mains and auxiliary voltage, sensitive to AC residual currents and pulsating DC residual currents (type A), compact design for all rated currents, high short-circuit resistance, double-sided two-tier terminals for large conductor cross-section and busbar, switch position indicator, viewing window for labels, multifunction switch toggle with three positions: inchoninch, inchoffinch and inchtrippedinch, Neutral conductor position right

Applications:
These RCCBs are only designed for use in charging stations for electric vehicles, Not permitted for protecting systems in which electronic equipment may cause residual currents with frequencies not equal to 50 Hz. AC/DC sensitive residual current circuit-breakers of type B or B+ must be used in this case.
