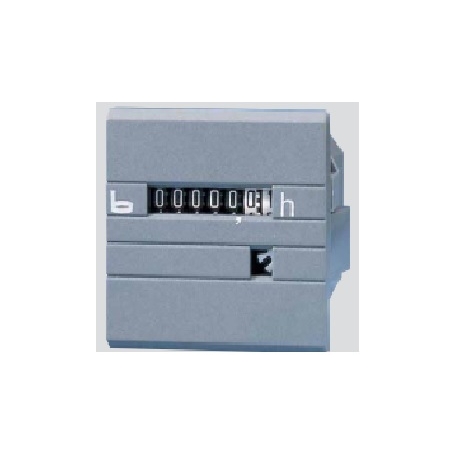

CONTA HORAS MECANICO 48X48MM 194-253V AC (631.2)

Name: ELECTROMECHANICAL HOUR COUNTERS 230V 631.2
Description: Electromechanical hour counters 48x48mm 230v ref:631.2

Features:
    • with relay: NA
    • Possible voltages: Standard: 115 or 230V AC / 10-80V DC (1,5 - 15 mA) By request:12,24,36-48 and 400V AC / 2-20V DC (0,5 - 27 mA) / 80-220V DC ( 1,5 - 4,5 mA)
    • Possible colors: Black/Grey
    • Possible connections types: plug/terminal
Technical Info:
    • Voltages: 115,230V AC - 10-80V DC
    • Mounting Type: retaining clip
    • product type: Electromechanical hour counters
    • NO:Reset
    • proteccion: IP65 (terminais IP00)
    • Parts type: Electromechanical
    • display: 99 999,99h
    • Special voltages (at additional cost): 12, 24, 36-48, 400V AC - 2-20, 80-220V
    • Connection type: Terminal
    • protection against accidental contact
    • frequency : 50 / 60 Hz -(on request 50 and 60 Hz)
    • ambient temperature: - 20°C to + 70 °C
    • Counting range: 99999,99 h
    • Voltage: 230V AC
Design:
    • Housing colour: Grey
    • Size: 48x48mm
