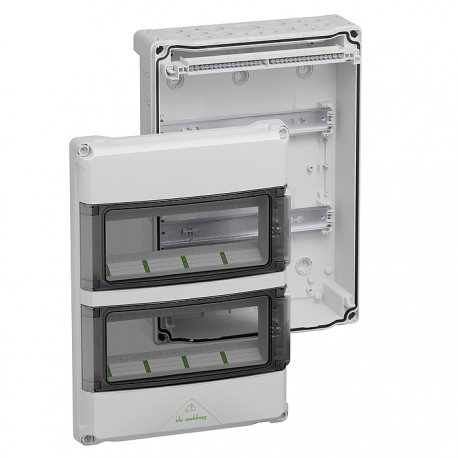

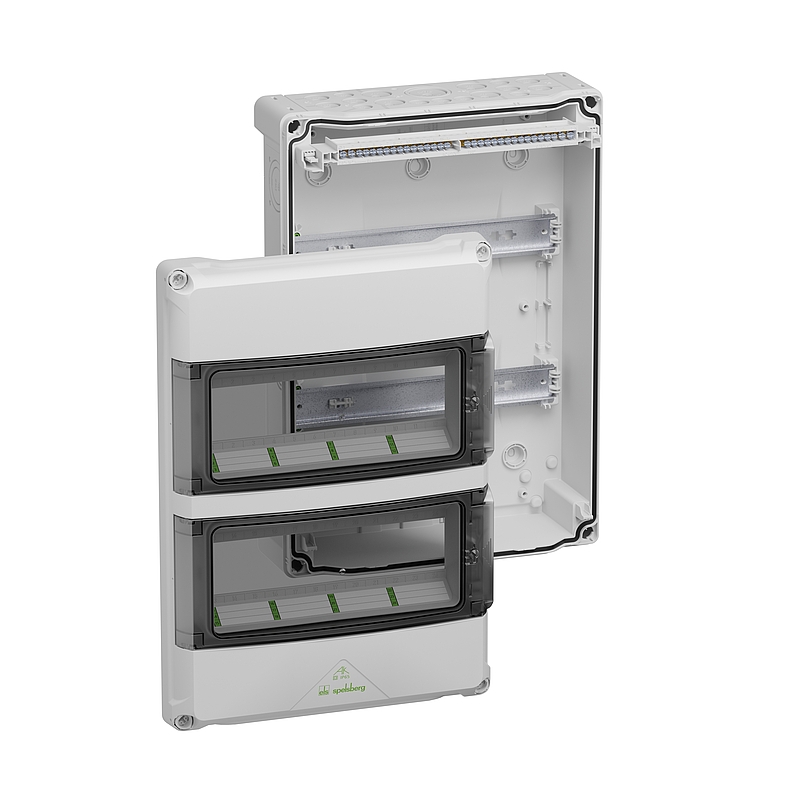

QUADROsaliente AK 24 Basic 24TE 290x407x124mm IP65 IK08

Distribution board AK 24 Basic 24TE 290x407x124mm IP65 IK08

Small distributions boards, protection class IP65, 2 rows, 24 available modules, rated operational voltage: 400V AC, rated insulation voltage: 1000V AC, 1500V DC, above self-sealing, soft insertion membranes for tool-free cable insertion, below metric knockouts for universal cable insertions with cable glands and/or double membrane seals, for standard installations indoors

PE- and N-screwterminal: PE and N each with 2 clamping points of 6-16 mm² and 14 clamping points of 1,5-6 mm²

Accessories supplied:
Sealing plugs, cover and labelling strips

Highlights
- Self-sealing, soft insertion membranes on one end of the box
- Metric knockouts for cable glands or double membrane sockets on the other end of the box
- Box can be rotated 180°
- DIN rails can be mounted without tools
- Fixtures for 3- and 5-pole 6 mm² WAGO terminal 221 in the box base
