Staircase Time Switches

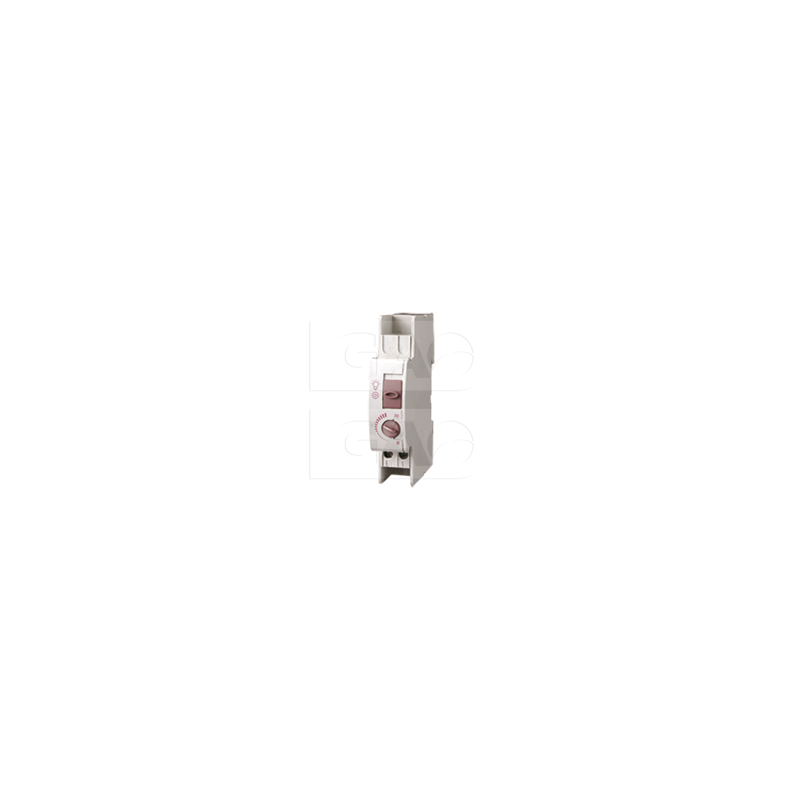

TIME STAIR CASE ELPA 8

GAO
022.5011H

Delivery in 2 to 3 weeks time

PVP s/IVA: 19,60€

More info

Name: ELPA 8

Features:
    • Electromagnetic staircase lighting time switch
    • Extreme reliability due to synchronous motor drive
    • Switching interval adjustable from 1-7 min
    • Tumbler switch for permanent light or minute light
    • Key input with max. 50 mA glow lamp load
    • very easy time adjustment and direct reading of the delay time on an absolute scale
    • High-precision mechanics and thus exact switching intervals
    • Very high interference susceptibility
    • Extremely low power consumption
    • Pre-selection switch for three- or four-wire connection
    • Four-wire with connection for floor lighting
    • three-wire connection without floor lighting
Technical Info:
    • Setting range: 1 - 7 min
    • Connecting cables: 3/4 conductor setting (automatic)
    • nominal current : 16 A
    • operating voltage : 230 V~, ±10 %
    • frequency : 50/60 Hz
    • power consumption : 1 VA
    • Glow lamp load: max. 50 mA
    • Voltage range inputs: NA
    • incadescent lamp load: 2300 W
Design:
    • size: 1 TE - 45 x 17,5 x 60 mm (DIN 43 880)
Accessories:
    • terminal cover: 9070065
