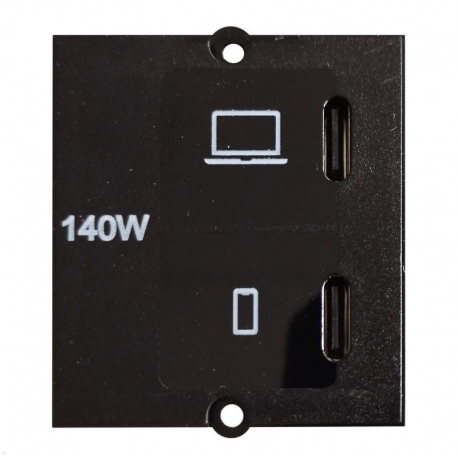

MODULO PD/PPS 2x USB C/C/C 140W IP44

PD/PPS module 2x USB C/C/C 140W IP44

The Bachmann Custom Module USB C/C/C 140W is the premium solution for fast, safe, and versatile charging. Equipped with three USB-C ports and state-of-the-art GaN (gallium nitride) technology, it offers maximum performance in the smallest space. With up to 140 watts on ports C1 and C2, it charges even powerful laptops in the shortest possible time— At the same time, tablets and smartphones can also be optimally supplied with energy.

Thanks to the innovative GaN technology, the module operates up to 20% more efficiently than conventional silicon chargers, generates less heat, and remains particularly compact. Multiple USB-C ports enable parallel charging of different devices, while Power Delivery (PD) and Programmable Power Supply (PPS) not only ensure up to 40% faster charging times but also a longer battery life. Integrated safety features such as overcurrent, overvoltage, and overheating protection ensure worry-free charging at all times. With its IP44 certification, the module is also protected against dust and splash water and can optionally be equipped with a locking function for a permanent connection.

Technical Details Bachmann USB Triple Charger with Power Supply
Max. Power: 140W
Ports: 3x USB-C (PD/PPS)
Front: USB-C port 1 and 3
Rear: USB-C port 2
Power values:
USB-C 1 & 2: up to 140 W (5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/5 A, 28 V/5 A)
USB-C 3: up to 30 W (5 V/3 A, 9 V/3 A, 12 V/2.5 A, 15 V/2 A, 20 V/1.5 A)
Intelligent load sharing for multiple connections
Efficiency: >88% at all load ranges
Integrated safety features: Protection against short circuit (OCP), overheating (OTP) and overvoltage (OVP)
IP44 protection against dust and splash water
Optional locking function for permanent connection
Scope of delivery:
1 x USB-C Charger 140W
1 x Power adapter 180W AC
1 x USB-C connection cable (1.0 m)
1 x Connection cable CEE7/7 to IEC C5 (1.0 m)
2 x Hex socket screws
Compatibility
Approved for installation in the following Bachmann series:
CONI, CONI DUO, CONFERENCE, CYCLE DESK, DESK 1, DESK 2, DUE, KAPSA, PIX, POWER FRAME, STEP ALU, TOP FRAME, UNIVERSAL, VENID

Area of application:
Ideal for conference rooms, office workstations, home offices, or anywhere where maximum charging performance and flexibility are required.

The Bachmann Custom Module USB C/C/C 140W (BM0021867) offers maximum charging power for laptops, tablets, and smartphones. Thanks to modern GaN technology, PD/PPS fast charging, and three USB-C ports, fast, efficient charging is guaranteed.
