ConextMatrix Modulo Center 2700K 118Lm 4x4cms 24V

Delivery in 2 to 3 weeks time

PVP s/IVA: 4,90€

More info

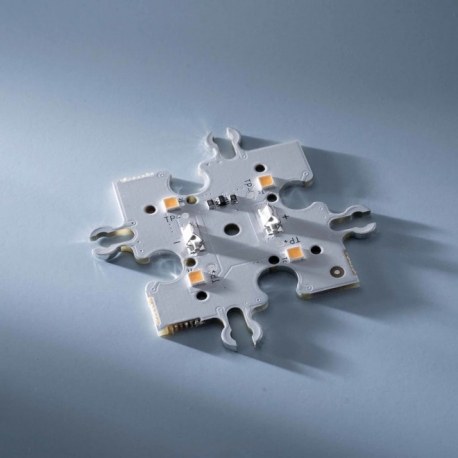

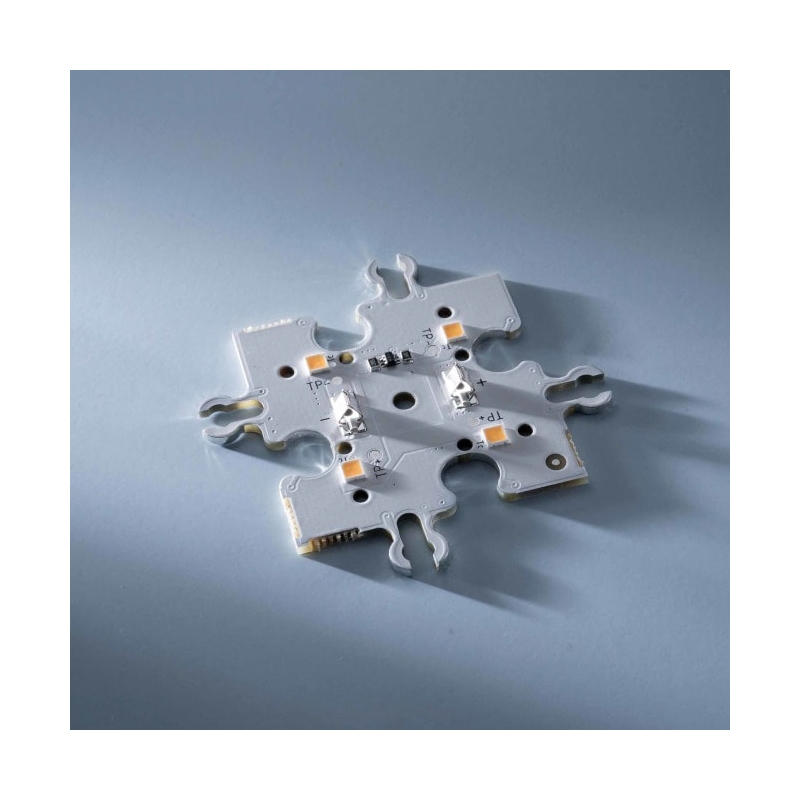

ConextMatrix Center Module 2700K 118Lm 4x4cms 24V

ConextMatrix Centre Module 4 warm white LEDs 118lm 4x4 cm 24V CRI 90
Here you get a middle module with 4 warm white LEDs in the dimensions 4 x 4 cm and a voltage of 24 V.

LUMITRONIX presents a world first with the patented Conext connection system. This connection system allows LED modules to be plugged together similar to puzzle pieces and thus enables a wide variety of different shapes to be created. The system is self-explanatory and playfully simple, anyone who has already puzzled can also connect the ConextMatrix modules. Nothing more stands in the way of your creativity. In addition, the uniqueness of the Conext series lies in the fact that no tools are needed for the electrical connection of the modules. No soldering, no cables and no plugs! Thus the modules lie flat without further superstructures and can be installed perfectly! The LED modules can be joined without connectors thanks to the fact that electrical contacts are located both on the noses of the male modules and in the bulges of the female modules, which conduct the current reliably and constantly! This revolutionary development by LUMITRONIX is unique in the world!

ConextMatrix - Simple connection/flexible shapes
The ConextMatrix modules are operated with a 24 V constant voltage. The power supply is provided by a power supply module, which has terminals for a solderless connection. The maximum load per supply is 10 A, which corresponds to a maximum of 270 modules.

Five different module shapes provide many creative possibilities:
The edge modules serve with a straight edge as an ending to one side.
The corner modules form an end to two sides and are also equipped with connection terminals.
The centre modules have connection options to all sides and can also be connected from below.
The linear modules have two straight edges and two connection options opposite each other.
The power supply module has three straight edges and two terminals for easy plug & play
High colour rendering and efficiency
All ConextMatrix modules are equipped with 4 high-quality Nichia LEDs in 3-step MacAdams binning, which guarantees uniform and homogeneous light. In addition, the modules convince with an excellent colour rendering index (CRI >90) and a very high efficiency of up to 133 lm/W. A further advantage is the dimmability of the modules, which allows individual brightness adjustment.

Features
Patented connection system Conext
Simple connection of modules
Power supply via power supply module with connection terminals
Dimmable
Nichia 757 LEDs
Very high colour rendering index (CRI >90)
24 V constant voltage
Connect up to 270 modules (max. 10 A)
