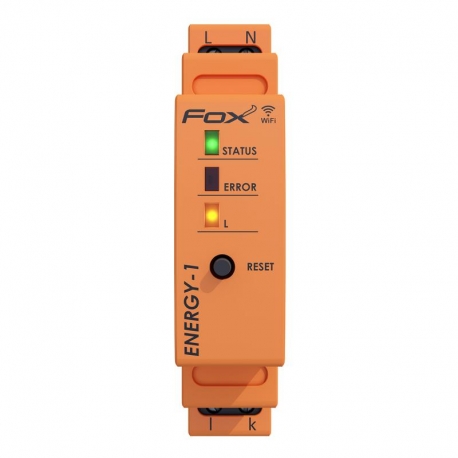

MONITOR CONSUMO ENERGIA MONO WI-FI ENERGY1

MONITOR CONSUMO ENERGIA MONO WI-FI ENERGY1

Product description
1-phase, 2-way, 4-quadrant electricity consumption monitor.
Perfect for monitoring photovoltaic installations, among other things

ENERGY 1 allows you to record electricity consumption and monitor important network parameters - voltage, current, power, energy consumption. Access to the data is possible directly from the application or via a web browser.


Application
Monitoring of energy consumption in domestic installations;
Ongoing measurement of power consumption and values of currents and voltages;
Use of recorded measurements to detect exceedances in voltage levels or power consumption;
Controlling energy production in photovoltaic installations;
Metering of heat pumps.


Properties
1-phase, 2-way, 4-quadrant energy consumption monitor, perfect for monitoring 1-phase photovoltaic systems, heat pumps, and energy consumption of household appliances such as;
Monitoring of all relevant parameters of the electrical network;
Registration of average, minimum and maximum values;
Calculation of energy consumption for different tariff plans;
Notifications in the event of energy over-consumption or abnormal supply voltage;
Non-invasive installation using miniature opening current transformers;
It comes with a 40 A transformer for a cable with a diameter of max. 10 millimeters;
High measurement accuracy;
Ability to export data to spreadsheets;
Access the measurement history via the app or a web browser;
Mounti ng in a distributi on box (DIN rail);
No external antenna - can be installed even in shallow switchboards.
Miniature, open-ended current transformers are supplied with the unit. No interference with the current leads is required to clip them onto the measured leads, but special attention must be paid to the way the lead is passed through the transformer and to the connection of the secondary side of the transformer to the device.
