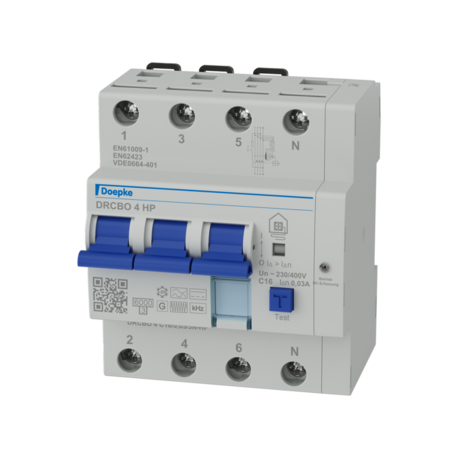

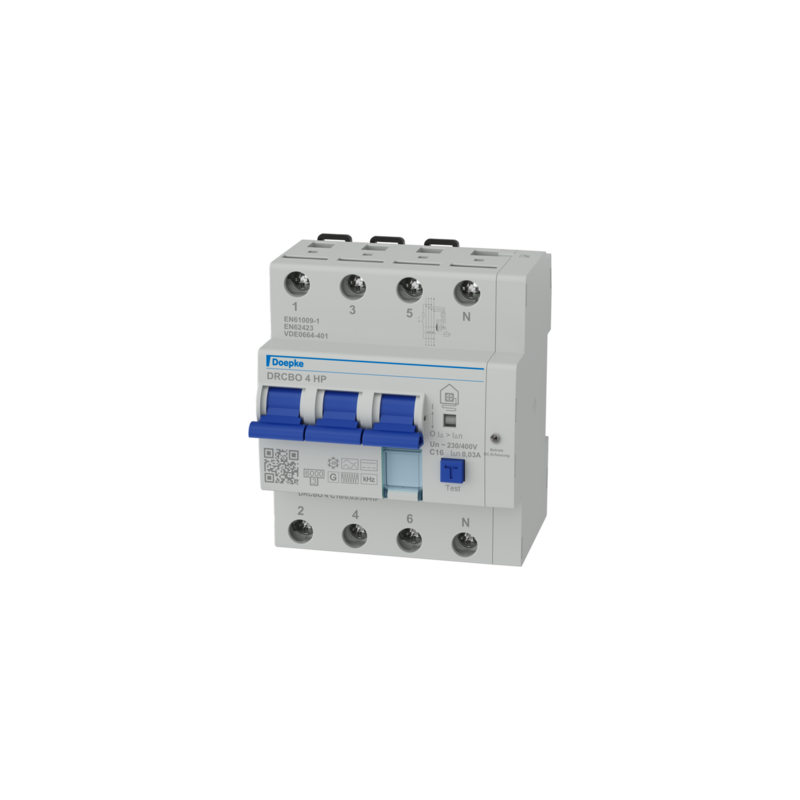

DISJUNTOR DIFERENCIAL DRCBO 4 C16/0,03/3N-HP

DISJUNTOR DIFERENCIAL DRCBO 4 C16/0,03/3N-HP

Description:
Residual current operated circuit-breaker with integral overcurrent protection, three-pole+N, 16 A, 0,03 A, 6 kA, C-characteristic, for heat pumps

Function:
RCBOs combine residual current protection and overcurrent protection in a single device. This makes them ideal for use in distribution boards where space is limited. The rated breaking capacity of the DRCBO 4 series is 6 kA. These current circuit-breakers are AC-DC sensitive and provide VDE fire protection requirements for frequencies up to 20 kHz. Our HP RCBOs were specially developed for the protection of heat pumps. They meet all the requirements of leading heat pump manufacturers and provide perfectly tailored protection. Thanks to the HP-optimised short-time delay, system availability is significantly increased - ensuring especially efficient and safe operation of your heat pump. With tripping characteristic C, these circuit-breakers ensure reliable protection for your circuits with loads that generate higher inrush peaks. Standard circuit-breakers are designed for circuits with 230 V or 400 V at 50 Hz.

Properties:
AC/DC sensitive for residual currents with frequencies of 0 Hz (smooth direct current) up to 20,000 Hz, mains-voltage-independent tripping when type A residual currents occur, compact design for all rated currents, switch position indicator, separate indication of tripping cause, strain-relief clamps with a wide terminal cross-section range on both connection sides, neutral conductor right, labelling area

Applications:
RCBOs of the HP variant are suitable for private, commercial and industrial installations with TN-S, TT and TN-C-S systems in which heat pumps are used.

Notes:
suitable for use in 50 Hz AC networks, not suitable for use on the output side of controlled electrical equipment such as frequency converters
