CAIXA P/MECANISMOS O-range ECON®Fix P/MADEIRA 62mm

CAIXA P/MECANISMOS O-range ECON®Fix P/MADEIRA 62mm

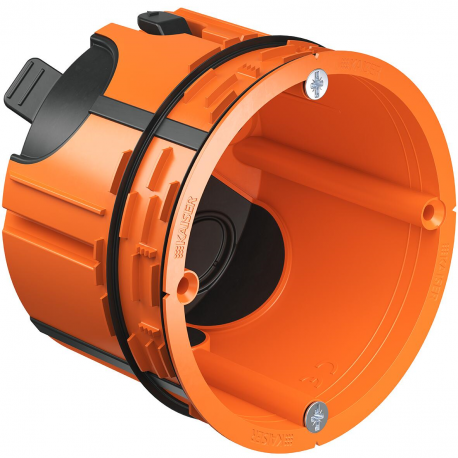

O-range ECON® Fix one-gang junction box

Clamping ribs fastening in building materials from 10 mm thickness, e.g. wall constructions with OSB boards, gypsum fibre boards, cross-laminated timber / solid wood and exposed masonry
4 screw domes
Air-tight design with sealing membranes
Toolless cable or conduit entries
Fully insulated, air-tight through-wiring for combinations using support connectors
Integrated cable retention of the NYM cable, self-locking of the conduit
including setting tool (Art. No.1090-12) per packaging unit
Depth62 mm
Cut hole Ø68 mm
Device screws +/-2
Conduit entries up to Ø 25 mm2
Cable entries 3 x 1.5 mm²3
Cable entries 3 x 2.5 mm² or 5 x 1.5 mm²3
Air-tightYes
