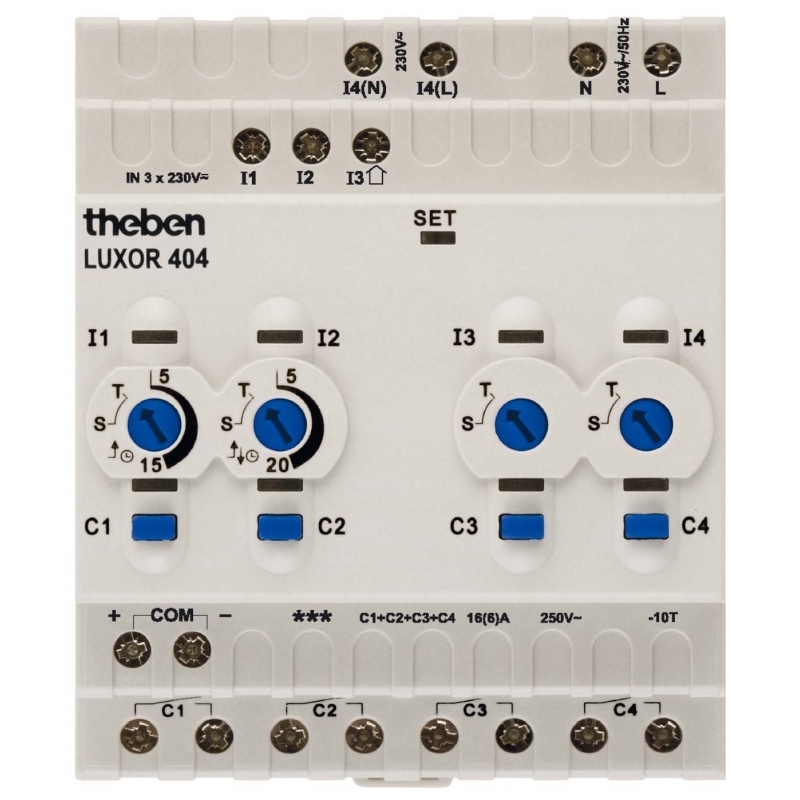

LIGHTING CONTROL LUXOR 404

Name: LUXOR 404
Description: LUXOR lighting control , Automatic staircase lighting. Living comfort control device, extension device, 4 channels

Features:
    • Introduction: Comfort installation easy and affordable! For the first time it is possible to realize a comfort installation in any residential building. Our LUXOR satisfies the exacting demands of every home owner - security, comfort and energy-saving. Until now, fulfilling these demands has involved high realisation costs. LUXOR offers you all this at an incredibly low price.
    • function: Modularly extendable system for the standard living comfort installation. REG modules connected via a two-wire COM interface. Extendable to up to 16 modules. Absolute functional safety due to the “stand-alone” function of each module. Completely floating and phase independent inputs and outputs. Simplest setting on the module itself.
    • 4-channel extension module
    • 4 x 16 A (6) Switching outputs
    • Hand switching
    • LEDs as display
    • Potentiometers to adjust the time functions
    • I 4 (L) and I 4 (N) to connect FI (RCD)
Technical Info:
    • Operating voltage : 230 V~, +10 %/-15%
    • frequency : 50 Hz
    • channels: 4 x 16 (6) A
    • degree of protection: IP 20
    • ambient temperature: -10 °C ... +50°C
    • power consumption : ca. 4 VA
    • Cable length: 100 m (COM and inputs)
Design:
    • size: 4 TE - 45 x 72 x 60mm
    • Application type: DIN
English Document
