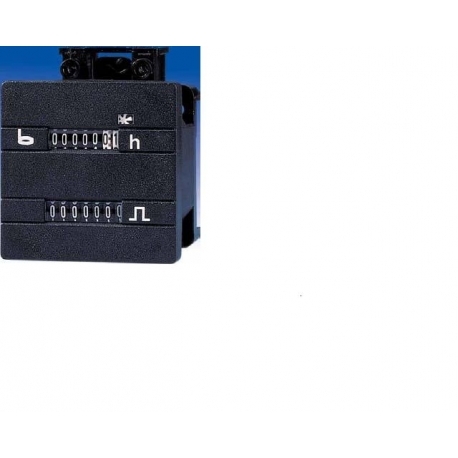

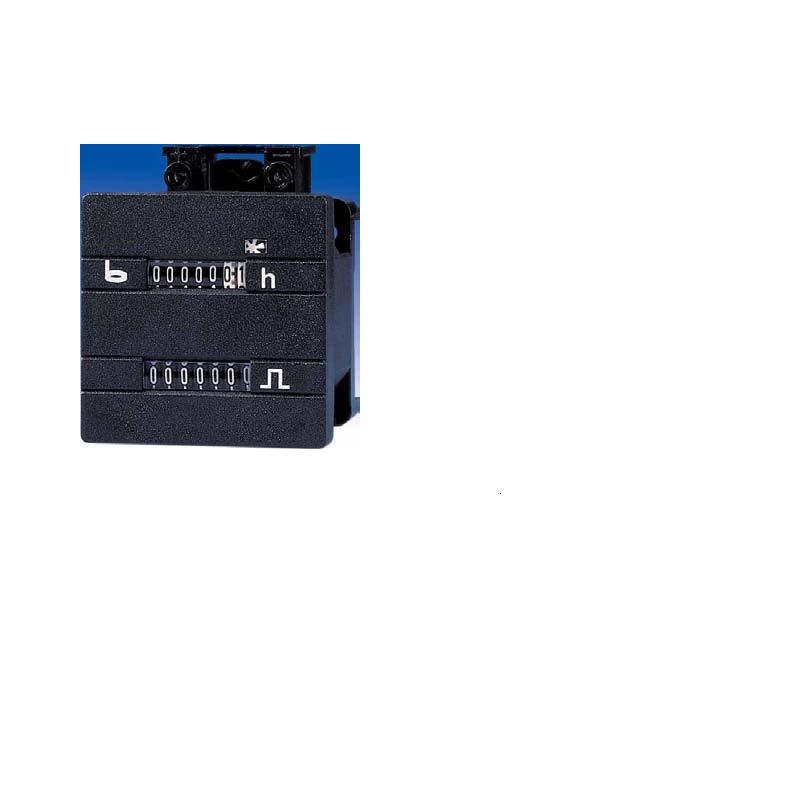

CONTA HORAS/IMPULSOS MECAN. P/CALHA DIN (920 A.2)

Name: HOUR AND PULSE COUNTER FOR DIN-RAIL MOUNTING
Description: The pulse counter registers the connecting frequency and the hour conter the total operating time of a machine/equipment.

Features:
    • with relay: NA
Technical Info:
    • Parts type: Electromechanical
    • NO:Reset
    • product type: Electromechanical hour/pulse counters
    • display: 99 999,99h / 9 999 999
    • proteccion: IP65 (terminals IP20, at additional cost terminal cover IP40)
    • degree of protection: IP65 (terminals IP20, at additional cost terminal cover IP40)
    • digits character height: 1,5X3,5 mm
    • Mounting Type: DIN-rail
    • voltage tolerance: +-10%
    • voltage: 24 V DC
    • Special voltages (at additional cost): 24V AC, 50/60 Hz
    • ambient temperature: -10ºC a +50ºC
    • Voltages: 115, 230V AC
Design:
    • Colour: Black
    • weight: 70g
